- Engine Options: (Gas) 22-40 HP Electric Start | (Electric) 15 HP 3 Phase, 240 Volt |(Hydraulic) 4 hoses with 8010-4- Pioneer Quick Couplers
- Belt: 48″ wide x 92′ long Mini Bucket Bare Back
- Elevator Belt Motor: Max Oil Flow 12 GPM | Max Oil Pressure 2,500 PSI
- Elevator Lift Cylinder: Max Oil Pressure 3,000 PSI. Oil flow determined by desired rate
- Hitch Capacity: 1,520 pounds
- Axle Capacity: 5,300 pounds
- Angle: Minimum of 15 degrees | Maximum of 30 degrees
- Dimensions: 45′ long x 48″ wide | Flat platform 10′ long
- Weight: 6,800 pounds

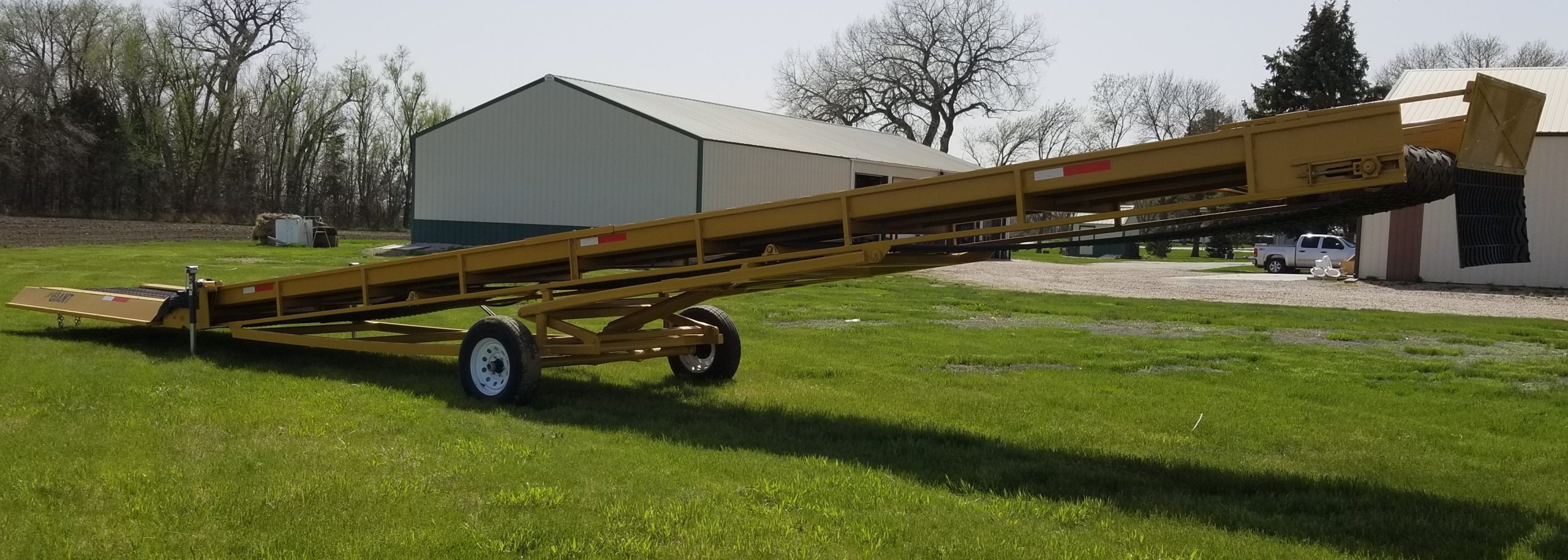

CSE Elevator

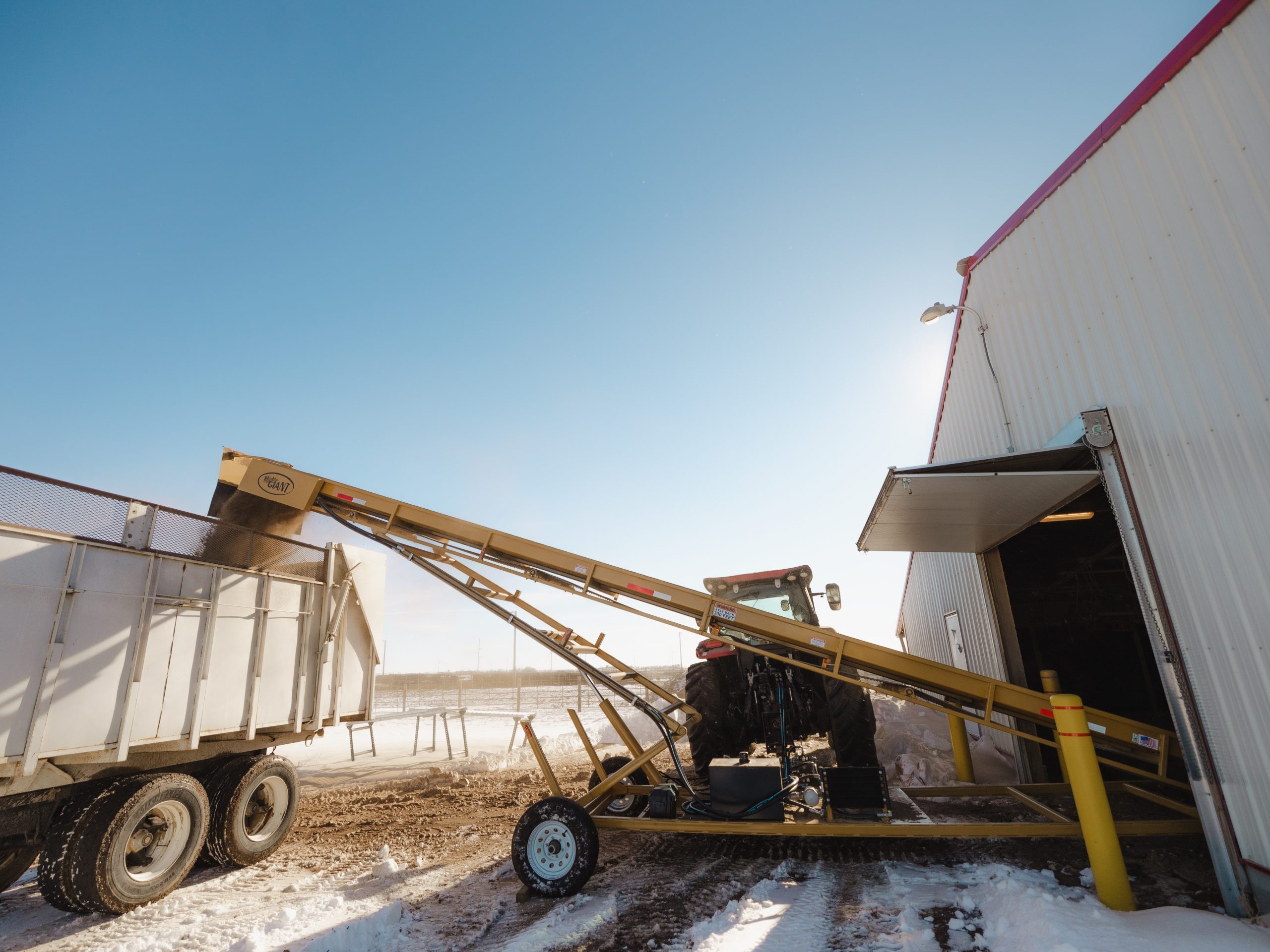

Whether it is a tight spot to get to or for ease to load a product into a truck or trailer, the Mighty Giant CSE is the elevator for you!

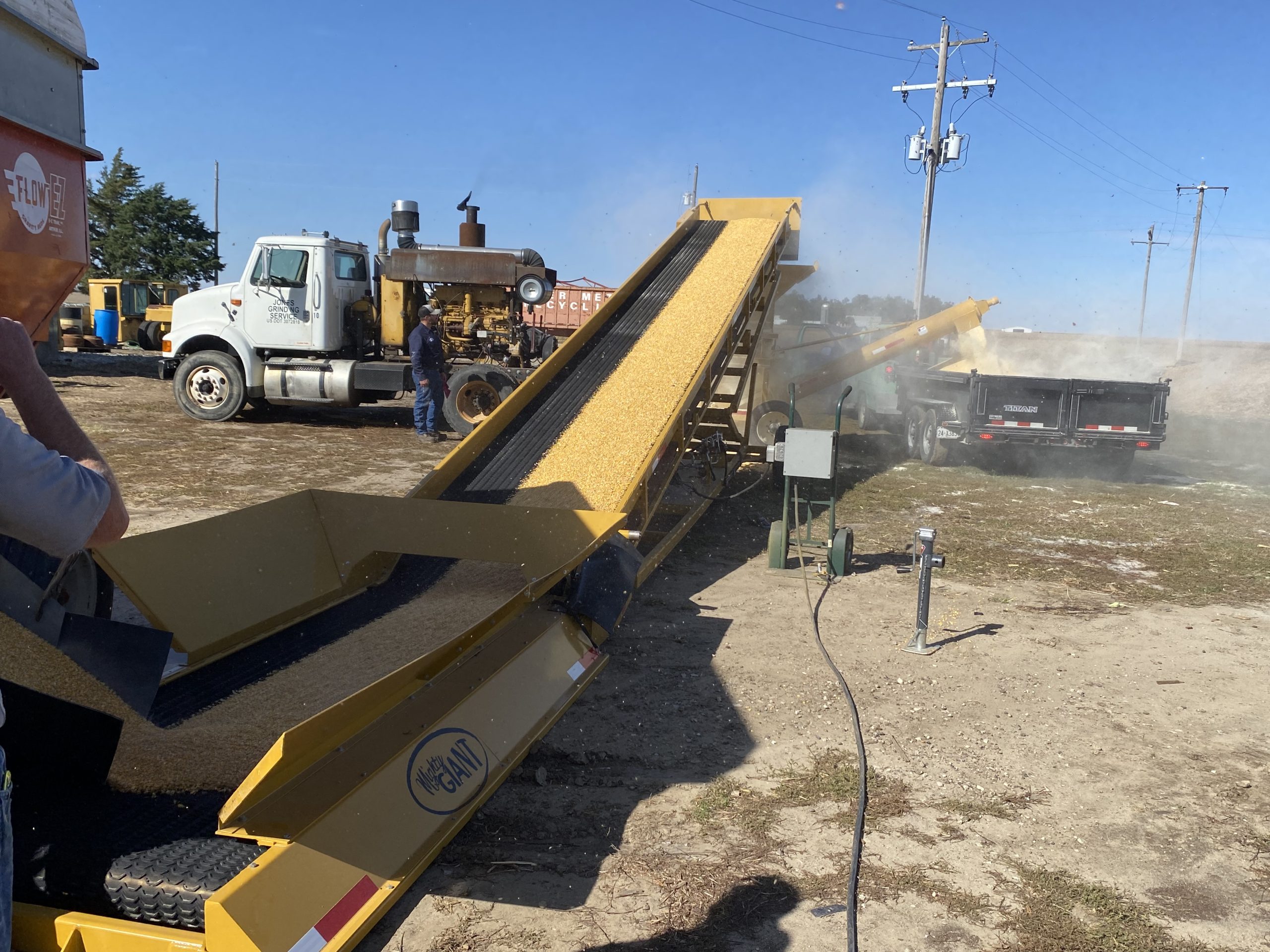

The CSE’s high capacity and 48″ wide conveyor can be used for moving many products such as forage, grain, dry manure, rock or ground wood. Need something wider, narrower, shorter or longer? Just like our grinders we can build it to fit your needs.
- Customer friendly hydraulics and belt adjustments
- Simple shield removal for easy clean-up
- Dual manual jacks for easy leveling
- 26 second no load cycle time
